R134a AC Gauge 3 Way A/C Manifold Gauge Set Air Conditioning Manifold Charging for R134A by Autowanderer Tool

Regular price
$49.99
Sale price
$49.99
Regular price
$39.99
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

Β

About this item

  • γ€ππ‘πŽπ…π„π’π’πˆπŽππ€π‹ 𝐀/𝐂 πƒπˆπ€π†ππŽπ’π“πˆπ‚π’γ€‘--AutoWanderer Tool 3-way air conditioning diagnostic manifold gauge set for R134A, R404A, R22, R12 refrigerants. Manifold gauge set is designed to test air conditioning systems by comparing the "high side" and "low side" pressure, which designed for automotive or household A/C freon charging, evacuation (vacuum), diagnostic check, and recovery work. Air Conditioning Diagnostic Freon Charging Set ideal of professional auto mechanics.
  • 【𝐀𝐃𝐕𝐀𝐍𝐂𝐄𝐃 𝐏𝐑𝐄𝐒𝐒𝐔𝐑𝐄 𝐆𝐀𝐔𝐆𝐄𝐒】--Anti-corrosion 3 way A/C gauge set has two 3 inch diameter dual movement gauges with easy to read color code scale. Blue low pressure gauge of range -30InHg-0-250PSI, and red high pressure 0-500PSI, Celsius unit.Sight window on the manifold helps to see the status of the refrigerant. Built-in calibration screws and a skip-free pointer allow for accurate measurement and real-time display of system pressure. Purge valve helps to clear air.
  • 【𝐀𝐃𝐉𝐔𝐒𝐓𝐓𝐀𝐁𝐋𝐄 ππ”πˆπ‚πŠ π‚πŽπ”ππ‹π„π‘π’γ€‘--With accurate snap lock and anti-slip knurled grip ring ,easy to connect and disconnect,compatible with all models service port. If you find the 1/4" Male to 1/2" Female Refrigerant Tank Adapter is missing, it may be playing hide-and-seek with you. Whisper to you,the pocket on the lid of the blow mold box is also its lair.If this adapter is not there,it can't to find way to home, please contact AutoWanderer Tool and we will help you out.
  • γ€π„π—ππ‹πŽπ’πˆπŽπ-ππ‘πŽπŽπ… & 𝐏𝐑𝐄𝐒𝐒𝐔𝐑𝐄-π‘π„π’πˆπ’π“π€ππ“ 𝐑𝐔𝐁𝐁𝐄𝐑 π‡πŽπ’π„π’γ€‘--With anti-corrosion, low fluid resistance, high bearing pressure, ensure security and good air sealing. 3 color for easily recognition, red for high pressure, blue for low pressure, yellow for refrigerant bottle. Max working pressure is 500PSI and burst pressure is 2500PSI. Each sides is loaded with 1/4" female brass fittings for easy connection.
  • γ€π’π€π“πˆπ’π…π€π‚π“πŽπ‘π˜ π‚π”π’π“πŽπŒπ„π‘ π’π„π‘π•πˆπ‚π„γ€‘--𝐀 𝐍𝐄𝐖 𝐒𝐄𝐋𝐅-π’π„π€π‹πˆππ† 𝐂𝐀𝐍 𝐓𝐀𝐏 𝐇𝐀𝐒 𝐁𝐄𝐄𝐍 𝐀𝐃𝐃𝐄𝐃 π“πŽ 𝐓𝐇𝐄 πŠπˆπ“ π…πŽπ‘ π‚πŽπŒππ€π“πˆππˆπ‹πˆπ“π˜ π–πˆπ“π‡ 𝐓𝐇𝐄 𝐋𝐀𝐓𝐄𝐒𝐓 π…π‘π„πŽπ 𝐂𝐀𝐍𝐒 𝐈𝐍 π‚π€π‹πˆπ…πŽπ‘ππˆπ€. AutoWanderer Tool is committed to providing a better buying experience! Welcome inquiries on various technical issues,we will answer within 24 hours!

3 Way A/C Manifold Gauge Kit is ideal for professional auto mechanics!

Start to diagnose and restore your air conditioner to prime condition!

Everything you need is in this value kit.

Β

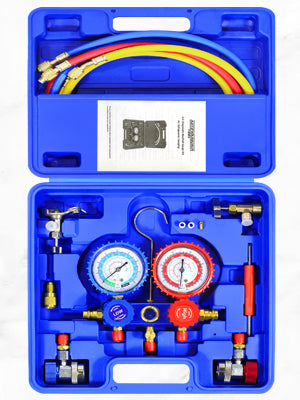

Product Details:




Quick Couplers

High pressure (red),Low pressure (blue).


Universal Can Tap

Self-sealing can tap

Puncture type can tap


ACME Adapter

1/4" Male to 1/2" Female Refrigerant Tank Adapter

Valve Core Accessories Kit

Valve core wrench and O rings.



WARNING: ONLY USE REFRIGERANT MARKED ON THE GAUGE WITH THIS A/C MANIFOLD GAUGE SET. (R134A, R22, R12, R404A)

  • Check the integrity of the product and the accuracy of the gauge needle (calibrate by adjusting the calibration screw)before using.
  • Connect one end of the Blue Hose to the LP Hose Connector and the other end to the Blue Coupler. Connect one end of the Red Hose to the HP Hose Connector and the other end to the Red Coupler.
  • Connect Yellow Hose:

Β A.DIAGNOSTIC CHECK: Connect one end of the Yellow Hose to the Charging Hose Connector and the other end to the Charge Valve on that Connector.

B.EVACUATION: Connect one end of the Yellow Hose to the Charging Hose Connector and the other end to the refrigerant recovery system/vacuum pump.

C.CHARGING: Connect one end of the Yellow Hose to the Charging Hose Connector and the other end to the refrigerant supply with a Can Tap.

  • Close LP Manifold Valve, HP Manifold Valve, both Coupler, Can Tap.
  • Attach the Blue Coupler to the suction LP port and the Red Coupler to the discharge HP port on the A/C system.
  • Turn on the vehicle and allow it to reach normal operating temperature.

Β Then, turn on the A/C system. Open both Coupler. Read the pressure on both of the Gauges and compare to the manufacturer’s recommended readings. Close both Coupler.

Β

Turn off the vehicle and the A/C system if the dynamic check was done

  • Turn on the refrigerant recovery system/vacuum pump. Open both Couplers, open LP Manifold Valve, HP Manifold Valve.
  • Read the amount of vacuum on the Blue LP Gauge. Shut off the refrigerant recovery system/vacuum pump when the vacuum level reaches the manufacturer’s recommended level.
  • Close both Couplers, close LP Manifold Valve, HP Manifold Valve. Turn on the vehicle and allow it to come up to normal operating temperature. Then, turn on the A/C system(about 5-10 minutes).
  • Connect the refrigerant CAN / CYLINDER and open it with Can Tap. Open Blue Coupler, open Blue LP Manifold Valve.Β
  • Read the amount of vacuum on the Blue LP gauge, and according to the value to select the appropriate capacity of refrigerant.
  • Observe the refrigerant filling condition through the Sight Glass and the Blue LP gauge. Close Blue Coupler when the refrigerant volume is in line with the manufacturer's recommendations.
  • Close Can Tap, close Blue LP Manifold Valve, turn off the vehicle and the A/C system. Carefully disconnect the Couplers from the A/C system, the hoses may contain residual refrigerant.
